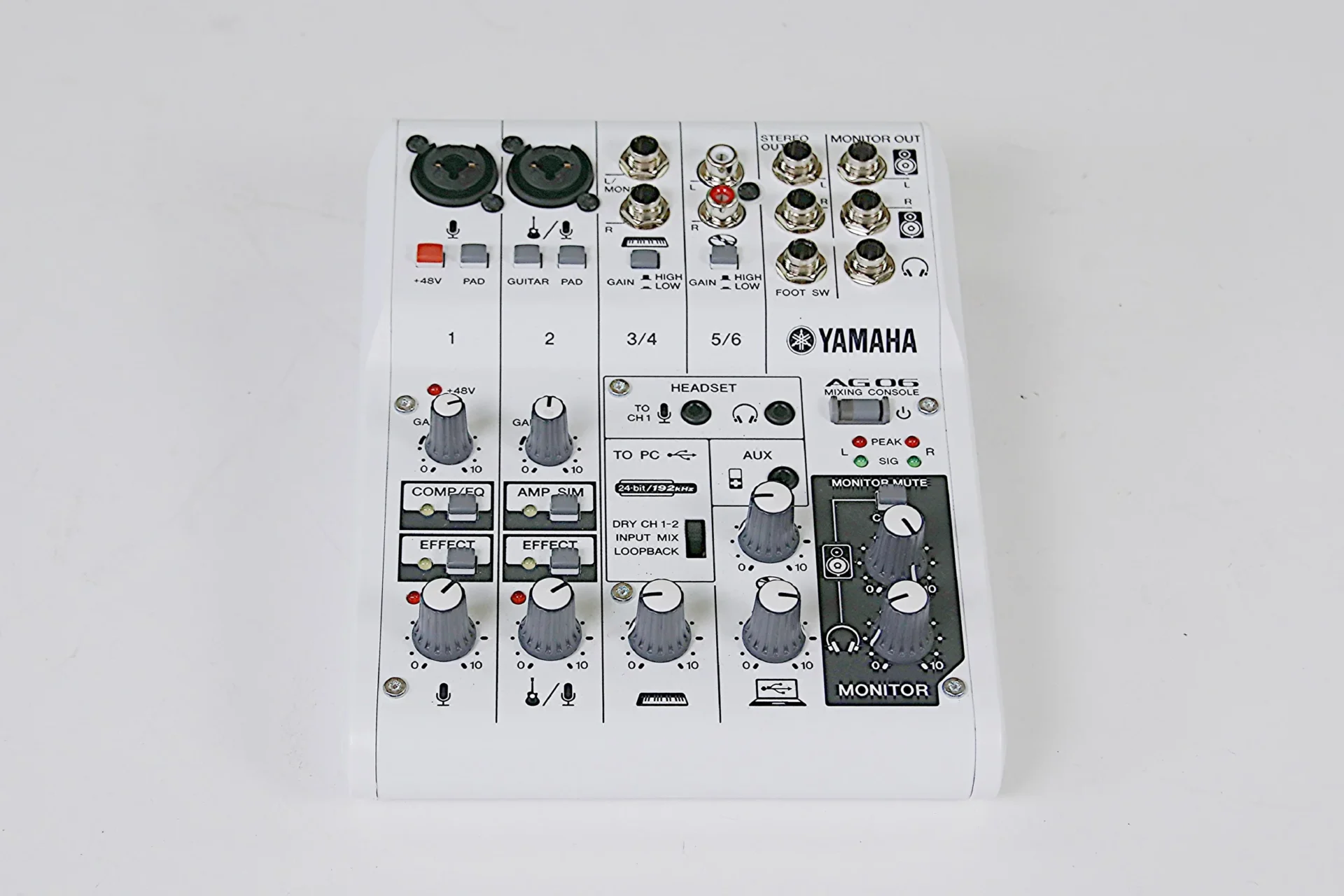

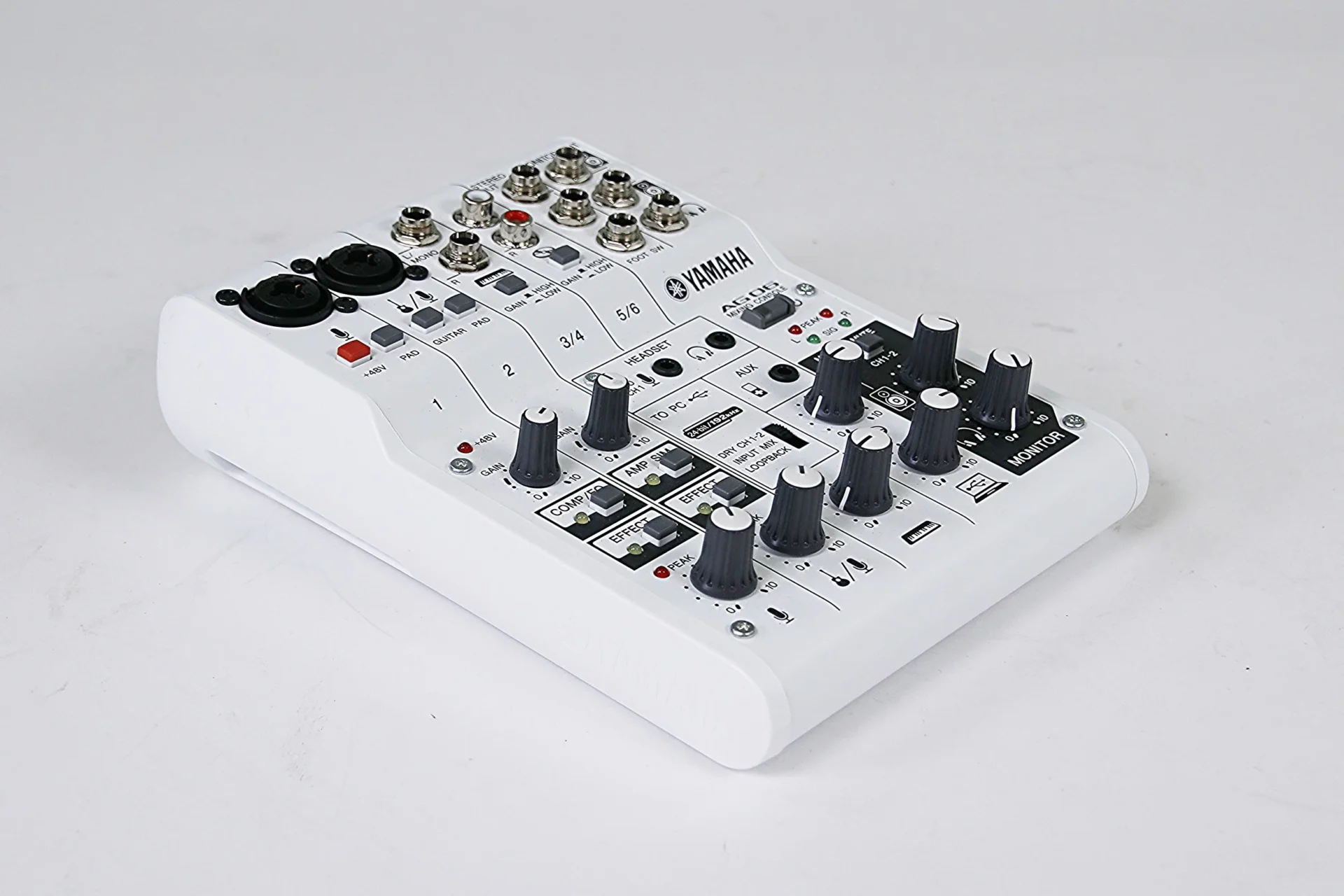

Yamaha AG06 mixing console Combined USB audio interface and mixer (24-bit/192 kHz) equipped with +48V phantom power, Pad switch, DSP effects
(Channel 1: compressor, EQ, reverb, Channel 2: amplifier simulation & reverb), 60mm fader, and FX bypass.
AG03 is also compatible with iPad, but the Apple Camera Connection Kit is required.
Power is supplied via USB (5V, 500mA), and Cubase AI is also included.
Phantom Power: +48 V
Mono Inputs: 2 including HEADSET MIC (Plug-in Power)
Stereo Inputs: 2
Stereo Outputs: 1
Monitor Outputs: 1
Headphone Outputs: 2 including HEADSET PHONES
AUX: 1
Bus: Stereo: 1
Pad: 26 dB
On-board Processors: DSP (Digital Signal Processing): Channel 1: COMP / EQ, EFFECT (SPX Reverb); Channel 2: AMP SIM, EFFECT (SPX Reverb)
Peak LED: LED turns on when the signal reaches 3 dB below clipping level
Level Meter: USB Output Level; 2 x 2 LED meter [PEAK, SIG]
USB: USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Power Supply: DC 5 V, 500 mA
Power Consumption: Max. 2.5 W
Weight: 1 kg
Size (Width, Height, Depth): 155 x 63 x 202 mm
Options: Foot Switch: FC5, Mic Stand Adapter: BMS-10A
Other Features: Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °.
| Weight | 1 kg |
|---|
